Includes:

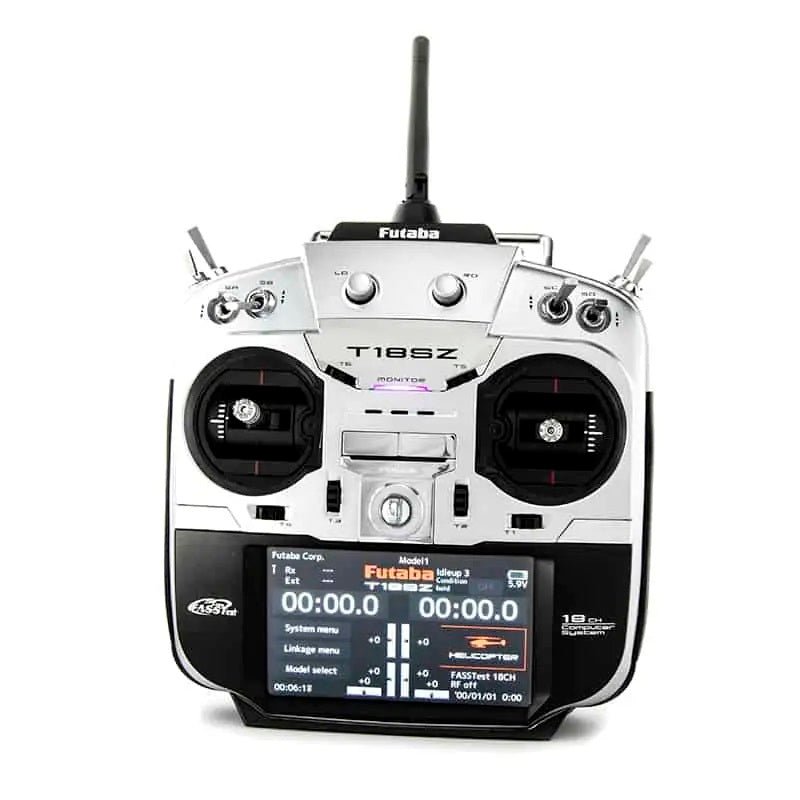

- T18SZ Transmitter - Helicopter Version includes smooth throttle
- R7208SB Receiver

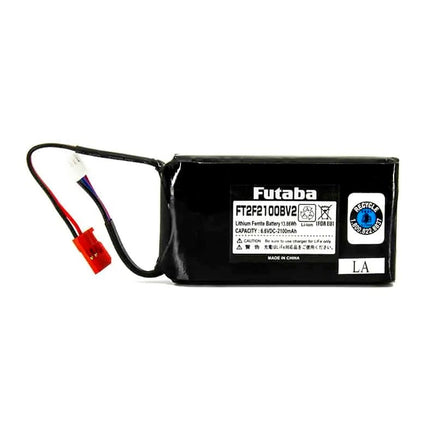

- FT2F2100BV2 LiFe Battery* and Charger
- Switch Harness
- Mini Driver
Features:
- FASSTEST SYSTEM: The 18SZ transmitter has adopted the bidirectional communication system "FASSTest". Data from the receiver can be checked in your transmitter. FASSTest is a maximum 18 channels 2.4 GHz dedicated system.
- COLOR TOUCH SCREEN LCD: T18SZ has an HVGA 4.3 inch, full-color backlit LCD touch screen. The screen is transflective which enables both indoor and outdoor visibility.
- S.BUS2 SYSTEM: By using the S.Bus2 system multiple servos, gyros and telemetry sensors are easily installed with a minimum amount of cables.
- MODEL TYPES: Multicopter. 8 swash types are available for helicopters. 7 types of main wings and 3 types of tail wings are available for airplanes and gliders. Functions and mixing functions necessary for each model type are set in advance at the factory.
- LIFE BATTERY: The 18SZ is operated by a 6.6 V/2,100 mAh Lithium Ferrite battery.
- SD CARD (SECURE DIGITAL MEMORY CARD) *NOT INCLUDED: Model data can be saved to an SD card (SD: 32MB - 2GB, SDHC: 4GB-32GB). When T18SZ transmitter software files are released, the software can be updated by using an SD card update.
- EDIT BUTTON: Two edit buttons are provided, and the operating screen can be immediately "Returned" to the HOME screen during operation. Setting operation can be performed easily by combining this button with a touch sensor.
- VIBRATION FUNCTION: Selects a function that alerts the operator to various alarms by vibrating the transmitter in addition to sounding a buzzer.
- SPEECH FUNCTION: A function is equipped which allows the system to provide telemetry data audibly. This function can also be utilized with commercially available earphones.
Transmitter Specifications:
- TRANSMITTER FREQUENCY: 2.4 GHz band
- SYSTEM: FASSTest18CH, FASSTest12CH, FASST MULT, FASST 7CH, T-FHSS, S-FHSS, switchable
- POWER SUPPLY: 6.6 V FT2F2100BV2 LiFe battery
- FREQUENCY BAND: 2.4 GHz
- RF POWER OUTPUT: 100mW EIRP

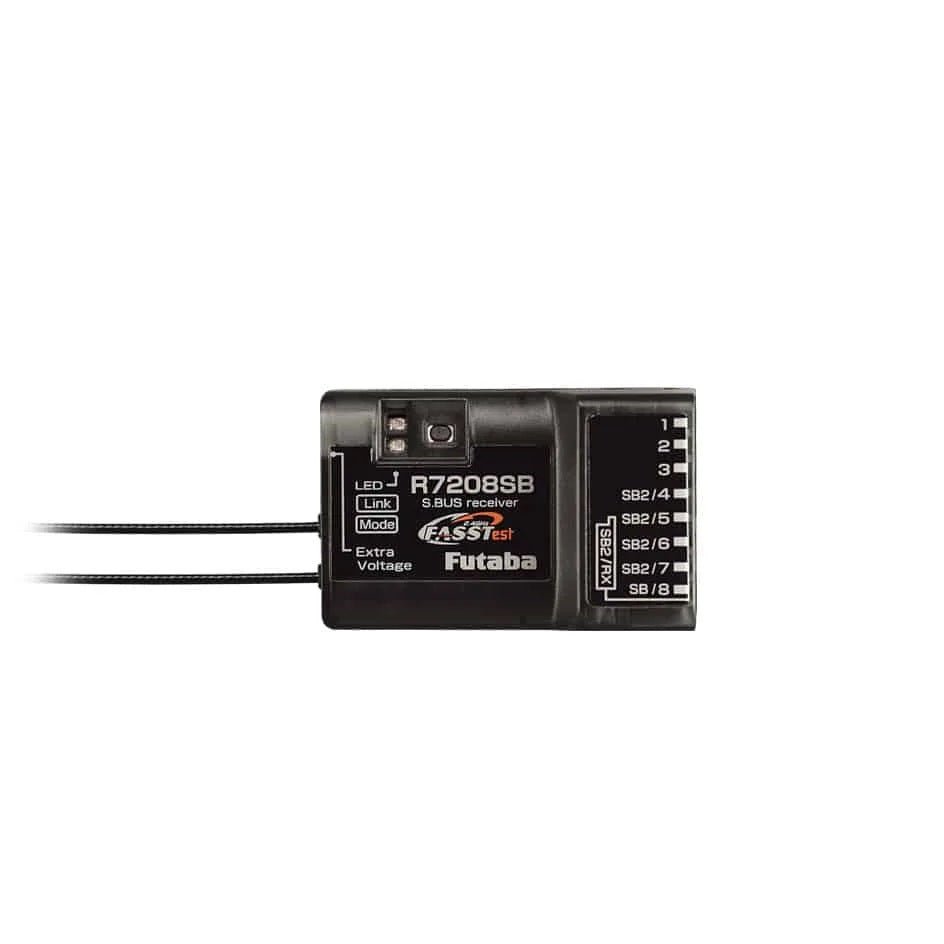

R7208SB Receiver Specifications:
- SIZE: 24.9x47.3x14.3 mm / 0.98x1.86x0.56 in
- WEIGHT: 12.0g / 0.42oz
- POWER REQUIREMENTS: 6.6 V LiFe Battery
- CURRENT DRAIN: 75 mA
- RF POWER OUTPUT: 25 mW EIRP
