The Mamba Micro X2 is a refresh of the popular 1:18 scale Mamba Micro X. This ESC increases the maximum input voltage to 4s. They also added DATA LOGGING and CRYO-DRIVE TECHNOLOGY; CryoDrive allows the ESC to run cooler and more efficiently at partial throttle. Like its predecessor, it boasts a 2 amp peak BEC, it's waterproof, and has SENSORED MOTOR SUPPORT.
This is the perfect upgrade for 1:18 scale RC vehicles, up to 3S LiPo and weighing in at up to 2lbs. Vehicles include: Losi Mini-T 2.0, Traxxas LaTrax Rally, Traxxas LaTrax Teton, Axial Yeti Jr.
The Mamba Micro X also works well in some 1:10th scale crawlers for low speed operation (no rock racing/hill climbing).
FEATURES:
Input Voltage range 2S-3S (with included 0808-4100Kv motor)
Adjustable: 5.5V or 7.5V (2A Peak), default 5.5V
Waterproof design.
Convenient transmitter programming for six common adjustable settings.
Additional settings and software updates available via Windows-based Castle Link software and USB adapter (coupon included with purchase) or the Castle Link App for Android or iOS and a B-LINK Bluetooth Adapter (sold separately)
Telemetry Ready (Compatible with S.BUS2 Telemetry Link and Futaba T4PX, T7PX and T7PXR transmitters)
Auxiliary Wire Functionality allows for "on-the-fly" adjustments such as Max Power and Max Brake.
Audible Alerts that will notify you of possible issues with calibrations and error conditions.
Designed and manufactured in Olathe, Kansas and is backed by a 1-year warranty.

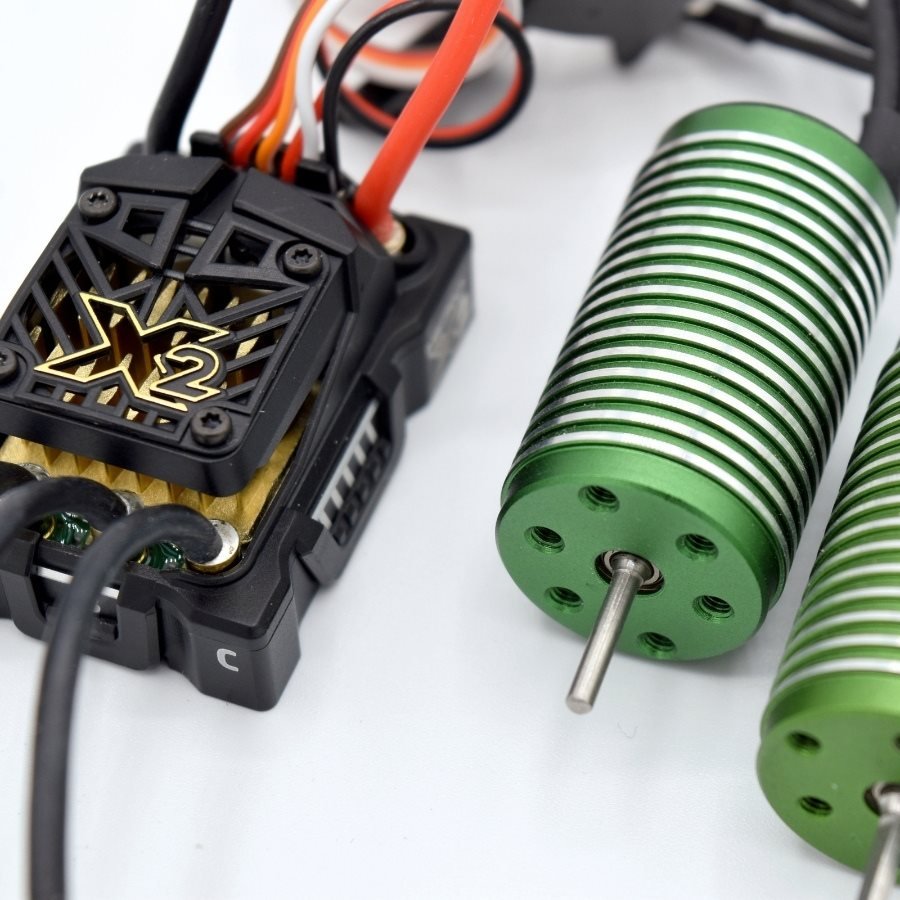

Mamba Micro X2 w/0808-5300Kv Motor Purchase Includes:

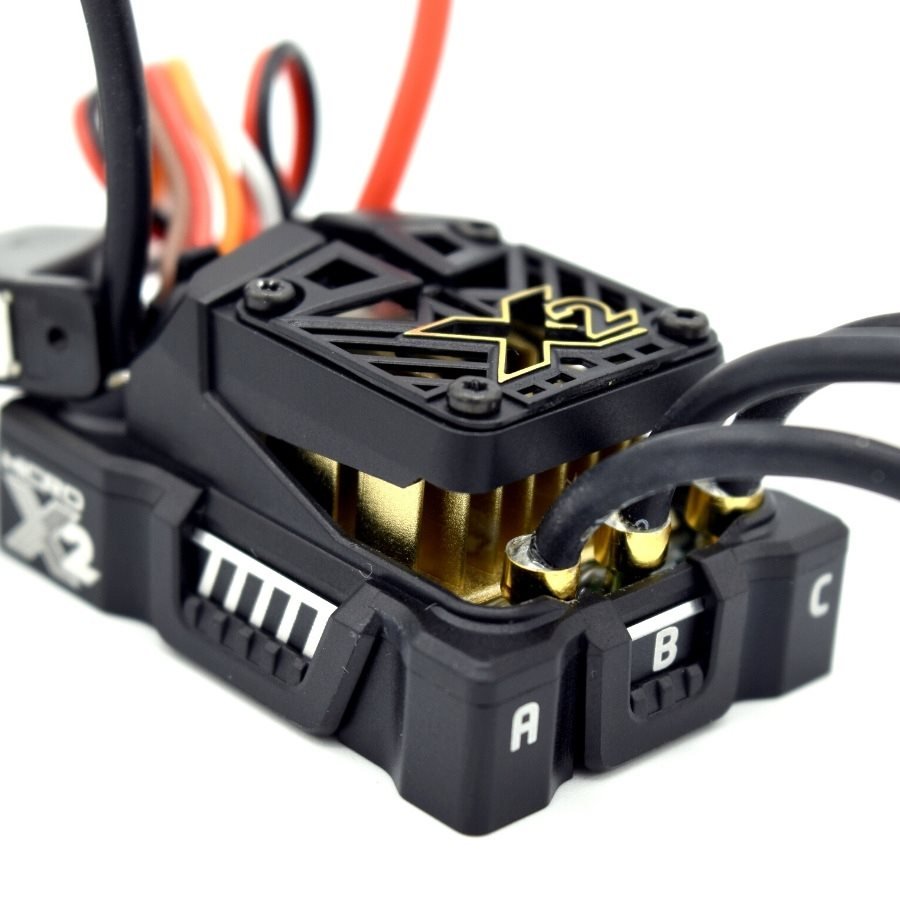

Mamba Micro X2 ESC

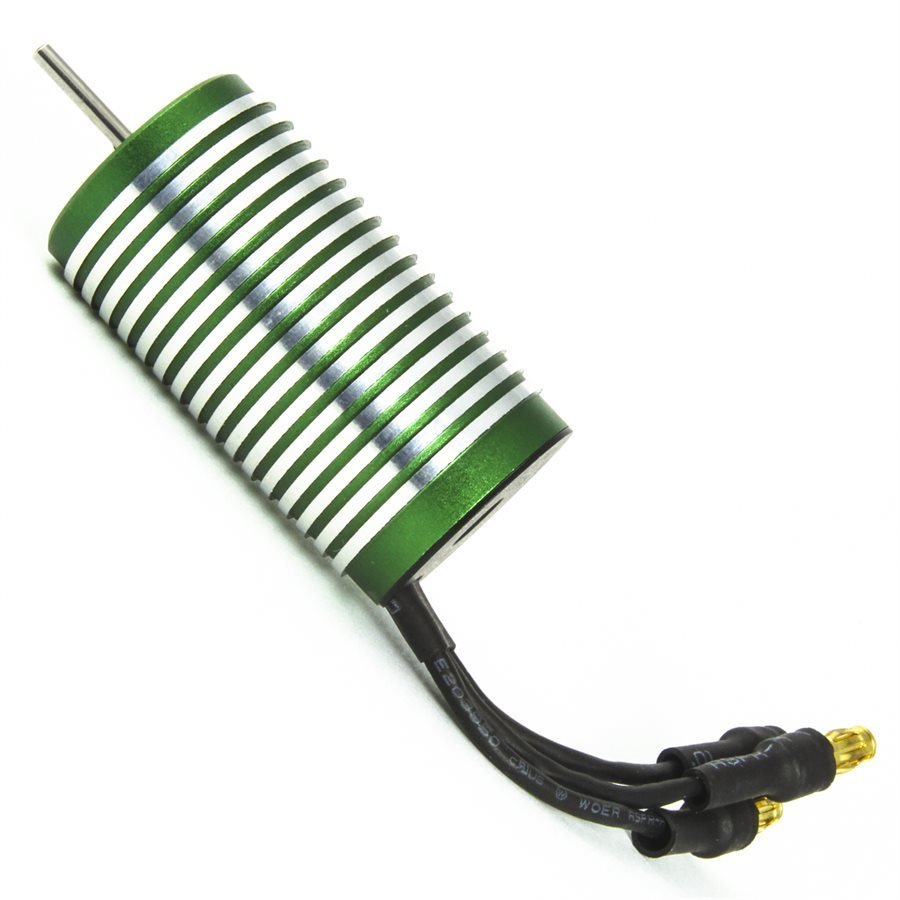

0808-5300Kv Brushless Sensorless Motor
Coupon for free Castle Link USB adapter
Quick Start Guide
Castle DecalsInput Voltage Range: 2S-4S LiPo (16.8V Max) (3S max with included 0808-5300Kv motor)
BEC Specifications: Adjustable; 5.5V or 7.5V (default 5.5V) 2A Peak
Size (L x W x H): 41.6 mm x 29.4 mm x 21.3 mm (1.64" x 1.16" x .84")
Weight (with wires): 1.66 oz / 47 grams
Connectors: 3.5 mm bullets
This is the perfect upgrade for 1:18 scale RC vehicles, up to 3S LiPo and weighing in at up to 2lbs. Vehicles include: Losi Mini-T 2.0, Traxxas LaTrax Rally, Traxxas LaTrax Teton, Axial Yeti Jr.
The Mamba Micro X also works well in some 1:10th scale crawlers for low speed operation (no rock racing/hill climbing).
FEATURES:
Input Voltage range 2S-3S (with included 0808-4100Kv motor)
Adjustable: 5.5V or 7.5V (2A Peak), default 5.5V
Waterproof design.
Convenient transmitter programming for six common adjustable settings.
Additional settings and software updates available via Windows-based Castle Link software and USB adapter (coupon included with purchase) or the Castle Link App for Android or iOS and a B-LINK Bluetooth Adapter (sold separately)
Telemetry Ready (Compatible with S.BUS2 Telemetry Link and Futaba T4PX, T7PX and T7PXR transmitters)
Auxiliary Wire Functionality allows for "on-the-fly" adjustments such as Max Power and Max Brake.
Audible Alerts that will notify you of possible issues with calibrations and error conditions.
Designed and manufactured in Olathe, Kansas and is backed by a 1-year warranty.
Mamba Micro X2 w/0808-5300Kv Motor Purchase Includes:
Mamba Micro X2 ESC
0808-5300Kv Brushless Sensorless Motor
Coupon for free Castle Link USB adapter
Quick Start Guide
Castle Decals
Specifications:
