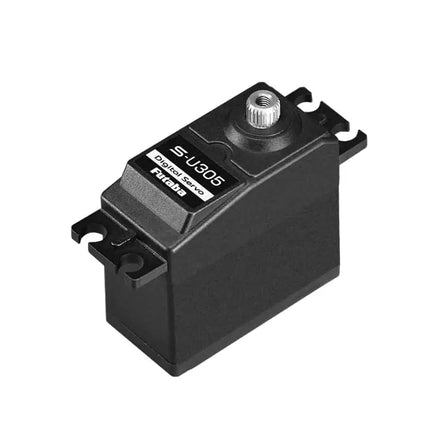

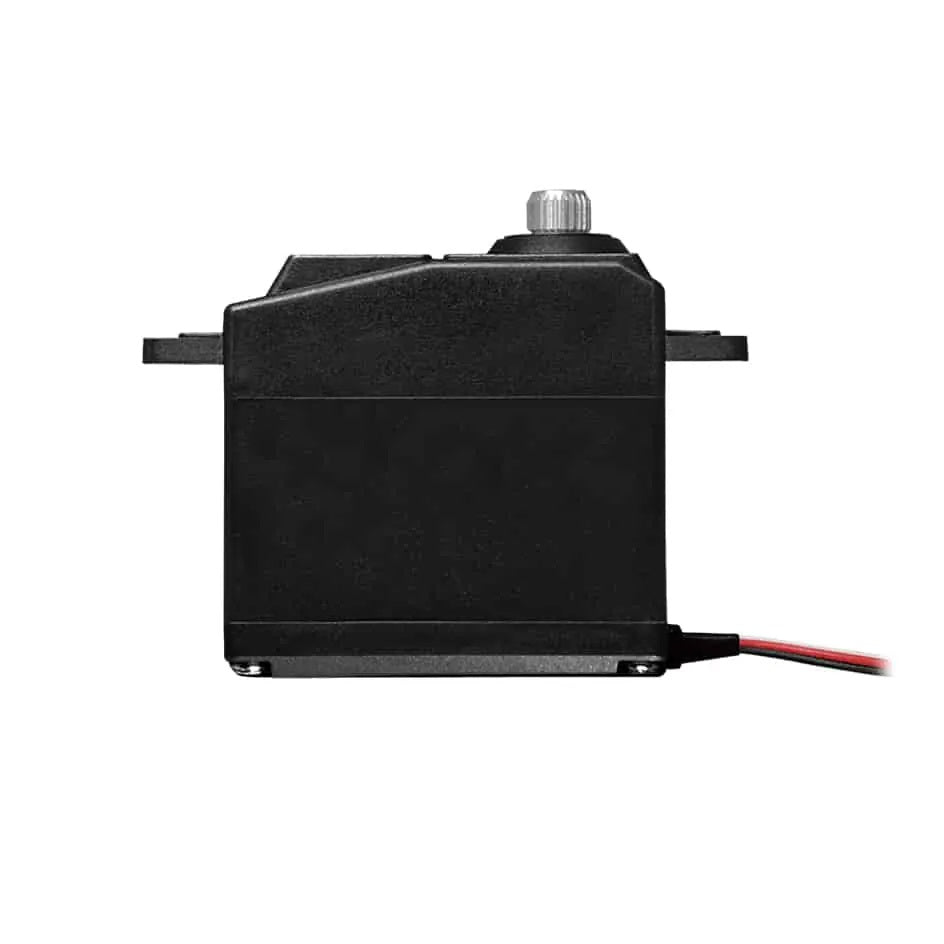

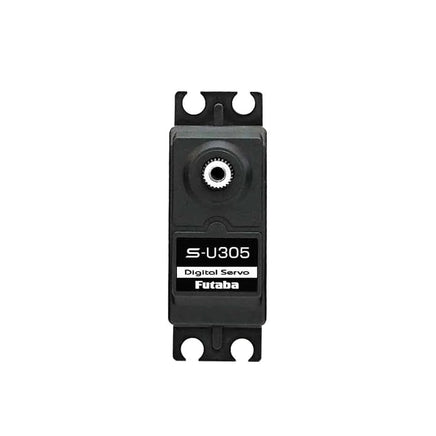

Heavy Duty Metal Gears Servo (01102376-3), S3305 replacement (01102253-3).
NO DRY BATTERY USE
NO SBUS
DO NOT LEAVE SERVO STALLED, Stall may cause printed circuit board to burn
NO DRY BATTERY USE
NO SBUS
DO NOT LEAVE SERVO STALLED, Stall may cause printed circuit board to burn
Specifications:
- SPEED: 0.18 sec/60deg at 6.0V
- SPEED: 0.23 sec/60deg at 4.8V
- TORQUE: 8.9 kgf/cm at 6.0V, 123.6 ozf/in at 6.0V
- TORQUE: 7.1 kgf/cm at 4.8V, 98.6 ozf/in at 4.8V
- SIZE:40 mm x 20 mm x 38.1 mm (1.57 in x 0.79 in x 1.50 in)
- WEIGHT: 46.5 g (1.64 oz)
