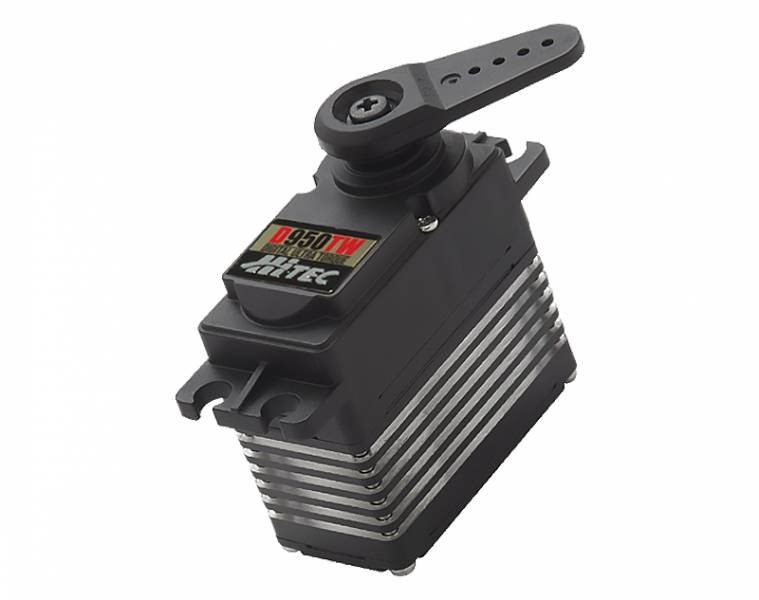

The titanium D-950TW is part of Hitec's D-Series dynamo servo line. All Hitec D-Series servos have been designed using their cutting edge, custom engineering. Combining industry leading high-resolution, state-of-the-art ultra-response technology with a 32-bit MCU and 12-bit ADC for unprecedented programmability and flexibility, these servos deliver significantly smoother movement. The speedy, powerful line operates on a wide 4.8 ~ 8.4 voltage range, allowing use with any common battery chemistry without the need for adapters or regulators. Featuring Hitec's industry standard 25-tooth output spline with 3mm hex screw, each D-Series servo brings monster performance never known before in the market.
Specifications:
- Motor Type: Coreless
- Bearing Type: Dual Ball Bearing
- Speed (4.8V / 6.0V / 7.4V): 0.23 / 0.17 / 0.14 sec/60
- Torque oz-in (4.8V / 6.0V / 7.4V): 292 / 403 / 486 oz-in
- Torque kg-cm (4.8V / 6.0V / 7.4V): 21.0 / 29.0 / 35.0 kg-cm

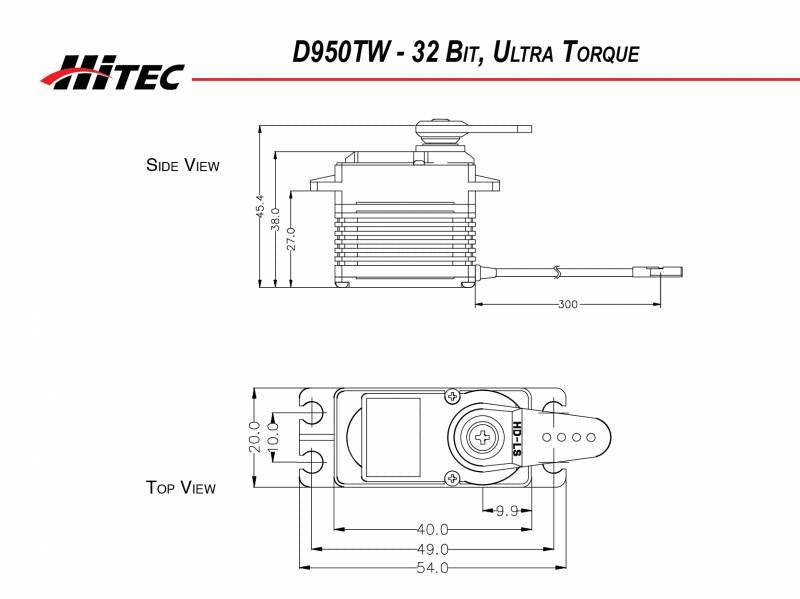

- Size in Inches: 1.57 x 0.79 x 1.50 in
