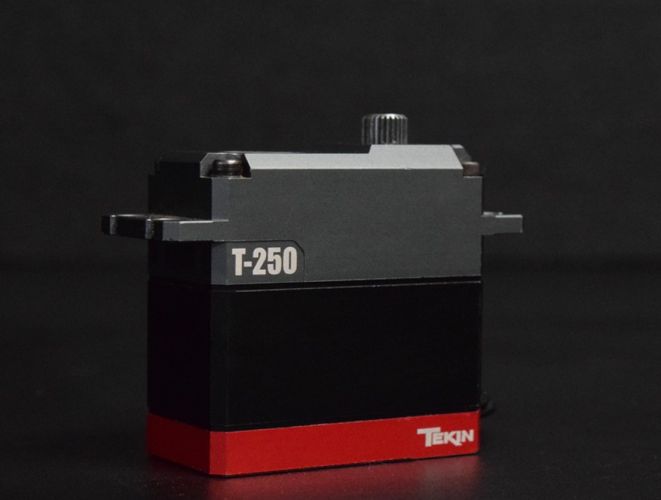

Pick your line and pass the competition with the Tekin T-250 Servo. Designed to give you the industry's highest per degree resolution steering and plenty of speed to keep that chassis where you want it. Full Metal Gear set, All Aluminum Housing, Digital Position Encoding and loads of Torque, this servo keeps you in control. Fine-tune your setup with and extensive set of adjustments via Tekin's HotWire PC Interface.
*Tekin Element Proof products are designed to withstand water, snow and mud. Not intended for operation while submerged in liquid.
**requires HotWire sold separately
Features:
- Digital Magnetic Position Encoder (DPE)
- Low Profile Design
- Specifically Designed for 1:10 and 1:8 Scale Applications

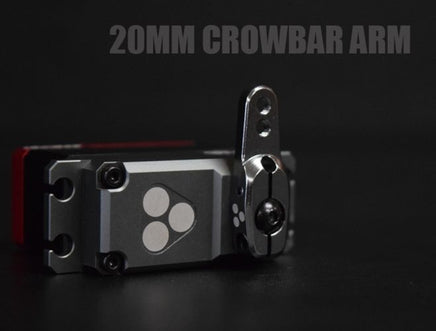

- Included Aluminum 20mm Crowbar HD Clamp Servo Arm
- Full Aluminum Servo Housing
- Element Proof Design*
- Precision Cut Full Metal Gears
- ABEC5 Ball Bearings
- High Voltage Capable
- High Torque Coreless Motor
- 25T Output Spline
- Programmable via HotWire PC Interface
- Overload Protection Technology
- Thermal Protection Circuitry
- Low Voltage Alarm**
- Quiet, Efficient, Cool Operation
- HDAC: High Density Copper PCB's
**requires HotWire sold separately
HotWire Programmable Features:
- Feel - Mild to Aggressive
- Speed Limit
- Torque (0-100%)
- Torque Delay
- Direction - Normal / Reverse
- Center Point
- Travel
- Soft Starting Speed & Torque
- Max Temp Alarm
- Low Voltage Alarm
- Over Voltage Alarm
- Bind Relief
- Fail Safe Speed and Position
- Set Custom Servo Name
Specifications:
- Torque (@8.4 - 7.4 - 6.0V): 310 - 282 - 254 oz/in, 22.3 - 20.3 - 17.6 kg/cm
- Dynamic Torque (@8.4 - 7.4 - 6.0V): 449 - 415 - 325 oz/in, 32.4 - 29.9 - 23.4 kg/cm
- Speed (@8.4 - 7.4 - 6.0V): 0.07 - 0.08 - 0.09 sec/60Β°
- Input Voltage: 4.8V-8.4V
- Gear Set: Full Metal
- Dimensions: 1.57 x 0.79 x 1.57in / 40 x 20 x 40mm
- Mounting Height (Base to Mount Tabs): 1.10in / 28.4mm
- Weight: 2.53oz / 72g
