Tamiya - 1/10 RC 2002 Mercedes-Benz CLK AMG Racing Version (TT-02)

$ 115.50 $ 165.00
SKU: TAM58722-A
Add To Wishlist

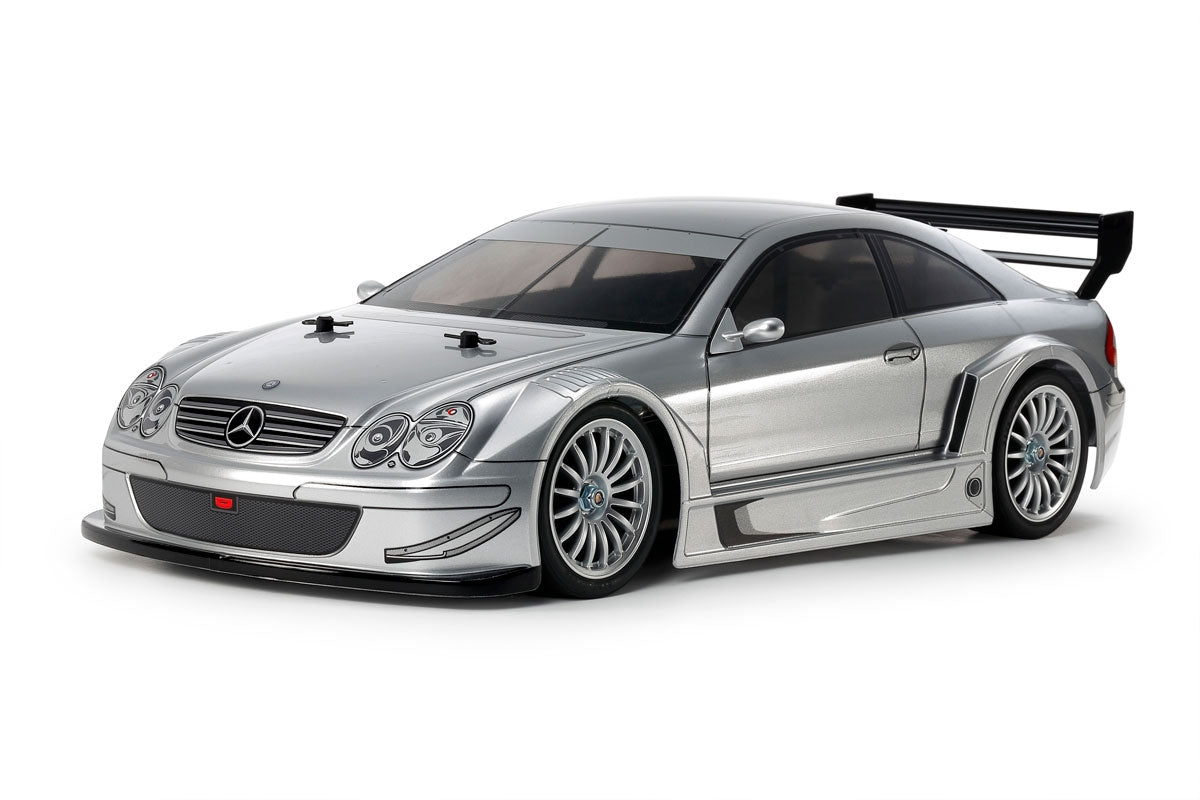

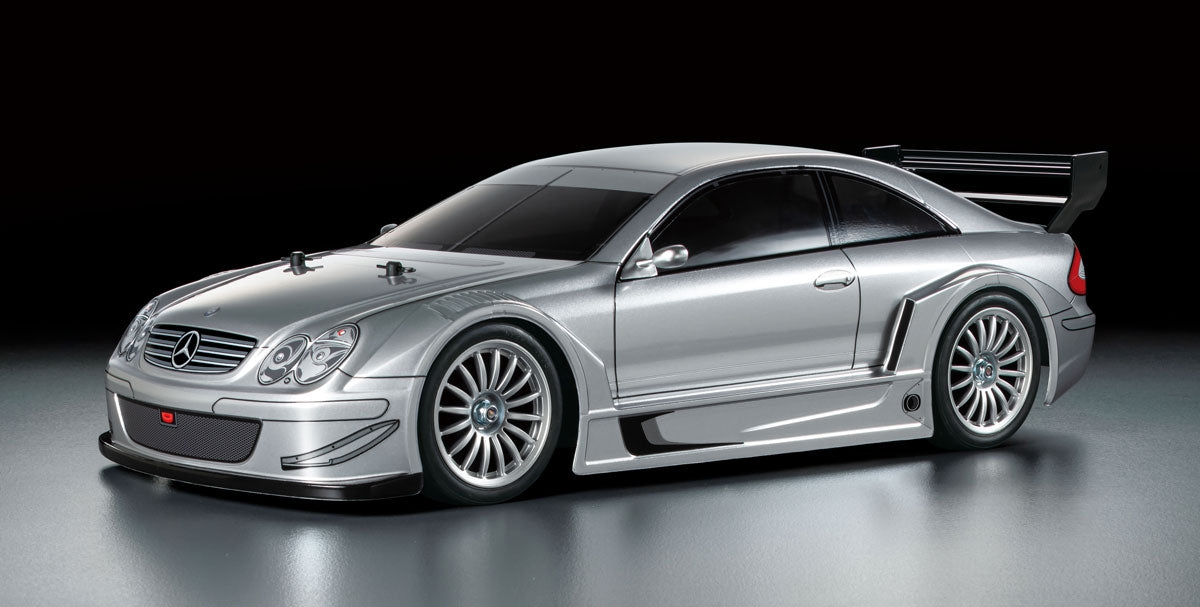

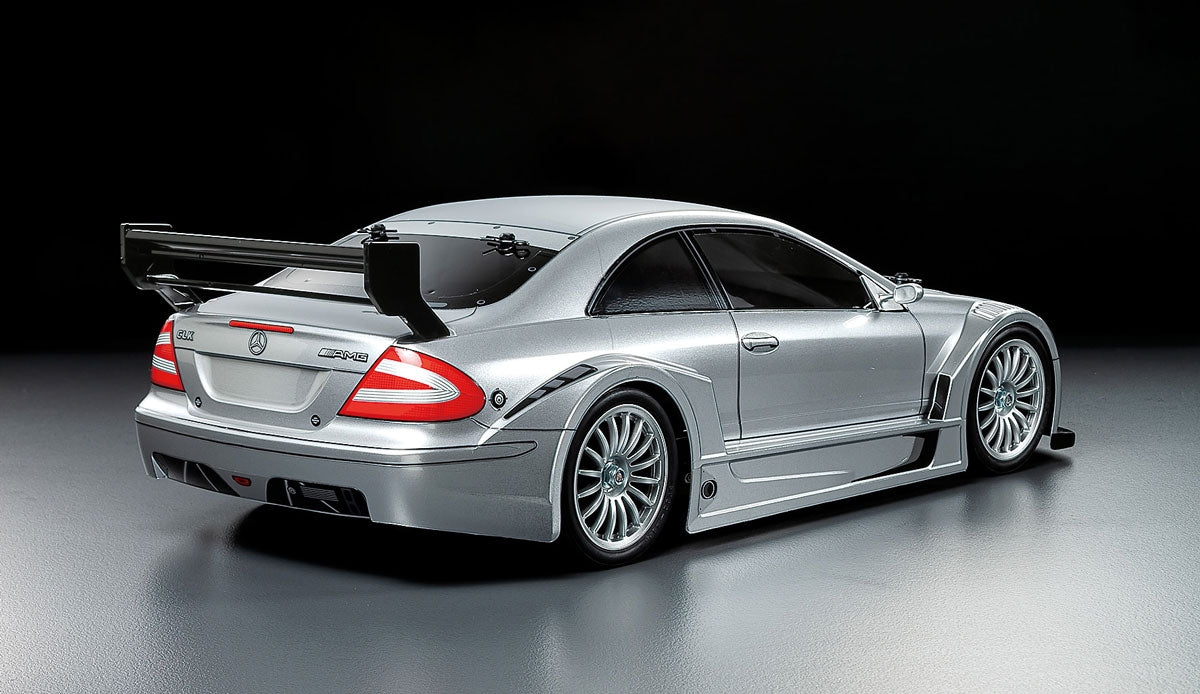

This R/C model assembly kit recreates the 2002 Mercedes-Benz CLK AMG Racing Version and is based on our popular TT-02 chassis. The body used in this kit was last seen on product 58296 CLK-DTM 2002 AMG-Mercedes on the TL-01LA chassis from 2002.

Adaptable TT-02 Chassis offers balanced shaft driven 4WD
The shaft driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to offer excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports.

Required to Complete: 2-channel radio, 7.2-7.4volt battery with compatible charger, and Tamiya PS paint to complete.


Features:
  • The souped-up body is recreated artfully in lightweight polycarbonate.
  • Separate parts realistically depict side mirrors and rear wing.
  • The model utilizes the shaft-driven 4WD TT-02 chassis which features superior adaptability and stability.
  • 16-spoke silver color wheels are paired with racing slick tires.
  • Comes with stickers and window masking tape for use in the paint job.
  • Resin ball links in the steering linkage joints make for smooth motion.

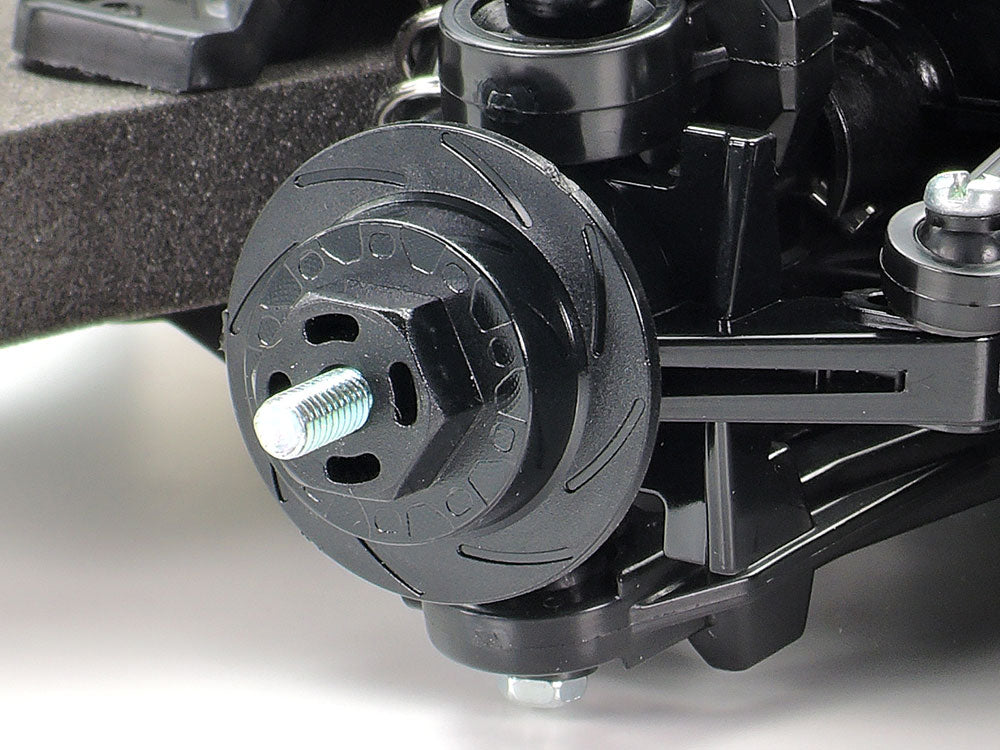

  • Wheel hubs are shaped to look like brake discs.
  • Motor cover includes removable cooling duct

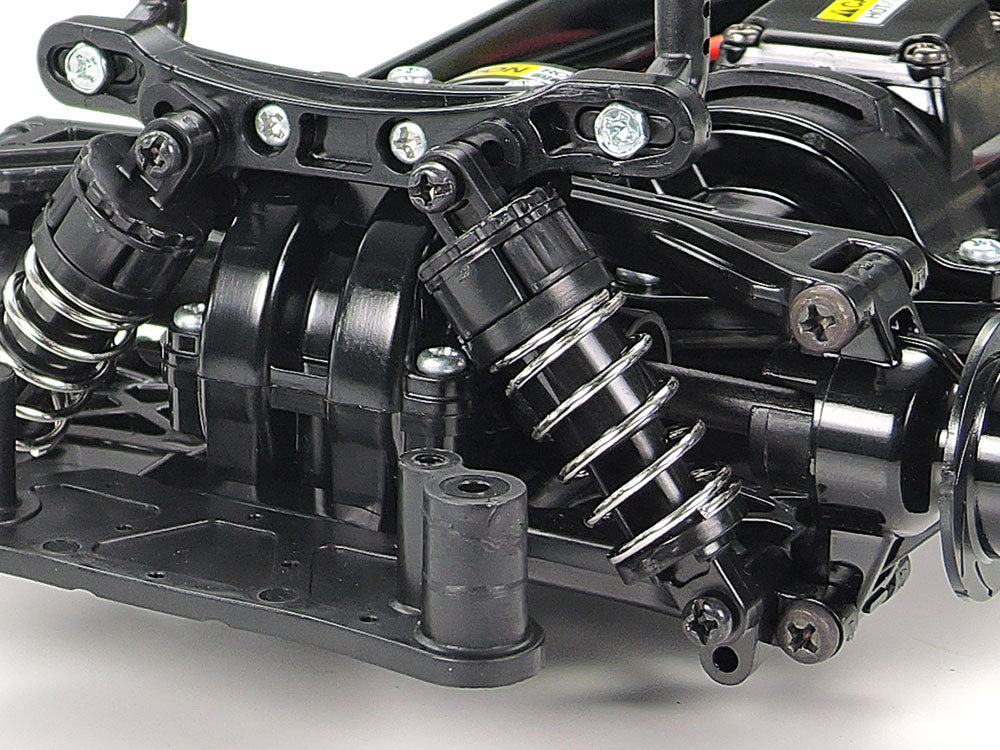

  • Double wishbone type rear suspension equipped with a friction damper.
  • Includes ESC and motor.


Specifications:
  • Length: 444mm, width: 185mm, height: 118mm
  • Wheelbase: 257mm
  • Tire width/diameter: 27/67mm (front & rear)
  • Gear ratio = 8.27:1 (9 further ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinions)
  • Adjustable Gear Ratio: Yes
  • Bearings: Plastic bushing
  • Body Material: Polycarbonate
  • Body Stickers: Included
  • Chassis Material: ABS Plastic
  • Chassis Type: TT-02
  • Construction Type Assembly Kit
  • Differential Type: 4-bevel plastic differentials
  • Drive Type: Shaft-driven 4WD
  • Electronic Speed Control (esc): Includes HobbyWing THW 1060 Brushed Motor ESC (2-3S)
  • Motor: 540-brushed type
  • Scale: 1/10
  • Shock Damper: Friction type
  • Suspension: Fully Independent Double Wishbone
  • Terrain Use: On-Road
