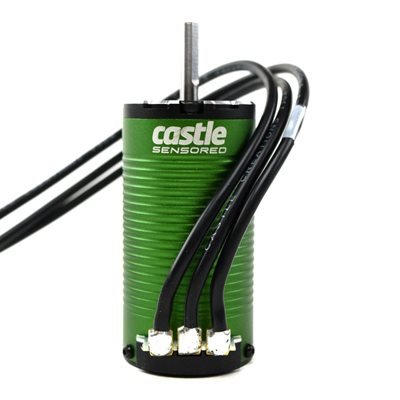

Castle Creations - Copperhead 10 ESC, 1415-2400kV 5mm Motor Combo

$ 224.95 $ 274.95
Sorry, this item is out of stock
SKU: CSE010-0166-16
Add To Wishlist

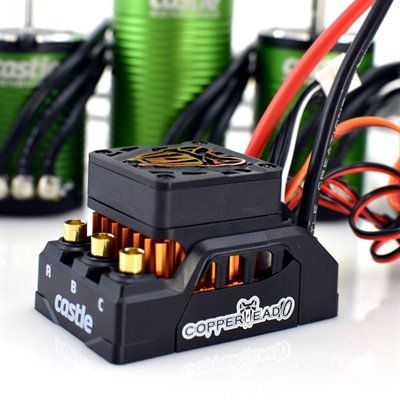

Meet the COPPERHEAD 10 PERFORMANCE ESC. It takes to the open road as well as it takes to no road at all. This completely new design rounds out our 1:10 scale offerings, positioned between the SIDEWINDER 4 as the entry-level upgrade and the MAMBA X as the extreme performance option. The COPPERHEAD 10 includes CRYO-DRIVE(TM) TECHNOLOGY, SENSORED MOTOR SUPPORT and DATA LOGGING LITE* with Castle's signature reliability and performance.

Items Needed for Operation: Battery Connector required, Castle 4.0mm Polarized Connectors, Traxxas(R) Power Connectors, or Deans(R) Ultra Plugs are recommended.

Includes:

  • Copperhead 10 ESC with sensor harness
  • Copperhead decals and Audible Alert Reference Chart
  • Coupon for free Castle Link USB
  • Copperhead Quick Start Guide
  • Sensor port dust cover

Features:

  • Input Voltage Range : 2s-4s LiPo (ESC Only)
  • SMARTSENSE(TM), SENSORED ONLY and BRUSHED Running Modes
  • Selectable 5.5V or 7.5V (6A peak) internal BEC (Battery Eliminator Circuit)
  • CRYO-DRIVE(TM) Technology minimizes the amount of time the ESC's electrical components spend generating heat, resulting in improved thermal performance during partial throttle operation where the majority of driving occurs.
  • ESC is housed in a durable injection molded case and potted in WATERPROOF epoxy to protect the electronics and promote efficient heat transfer.
  • 30mm removable fan and DUAL USE FAN GUARD
  • Compatible with S.BUS2 Telemetry Link and Futaba T4PX, T7PX and T7PXR transmitters
  • AUDIBLE ALERTS for easy diagnosis of common issues such as motor-over-temperature and low-voltage cutoff.
  • Convenient TRANSMITTER PROGRAMMING for six common adjustable settings including cutoff voltage and drag brake.
  • DATA LOGGING LITE* captures and records performance data from your vehicle to maximize performance and battery life. (Battery Voltage Battery Ripple, Controller temp, Motor RPM, Motor Temp)
  • SMARTSENSE(TM) uses the motor's sensors at startup to provide cog-free starts, excellent torque and low-speed drivability. Once the motor is turning, the ESC seamlessly transitions to Castle's ultra-efficient sensorless mode.
  • CASTLE LINK USB programming kit (coupon included with purchase)
  • Optional smartphone-based programming with the B-LINK(TM) BLUETOOTH ADAPTER (sold separately) and Castle Link App available on Google Play or Apple App Store
  • PROUDLY DESIGNED, ASSEMBLED AND SUPPORTED IN KANSAS, USA, backed by Castle Creations' 1-YEAR WARRANTY

Specifications:

  • Application Guidelines: 1:10 scale vehicles weighing up to 7.5 lbs.
  • Input Voltage Range: 2s-4s (16.8V Max)
  • Running Modes: SMARTSENSE(TM), Sensored Only and Brushed Motor Operation
  • Brake: Proportional
  • Reversible: Yes, but may be disabled for racing.
  • On/Off Switch: Yes, waterproof
  • Cooling Fan: Yes, factory equipped (30mm), fully removable** and includes dual use fan guard (See Operating Use Statements)
  • Size: 2.19" x 1.39" x 1.33" (55.6mm x 35.3mm x 33.8mm)
  • Weight (with wires): 70.9 g / 2.50 oz.
  • Motor Connectors: 4.0mm female bullets for motor connection
