The RS GEN3 brings a suite of enhanced features including better power handling and improved tuning features that give you unmatched adjustability. Maintain superior control in all situations with state-of-the-art components, award-winning performance and proven reliability. The RS GEN3 gives you the tools to win!
Standard features include an updated HD solder post design for easy soldering, a High Voltage BEC and HotWire compatibility for extensive tuning. Next generation components put more power at your disposal and firmware make the RS GEN3 our smoothest, best-driving RS ever.
* requires HotWire sold separately.
*per manufacturer specs
* requires HotWire™ sold separately.
Standard features include an updated HD solder post design for easy soldering, a High Voltage BEC and HotWire compatibility for extensive tuning. Next generation components put more power at your disposal and firmware make the RS GEN3 our smoothest, best-driving RS ever.
Features:
- QuickTune One Touch Programming

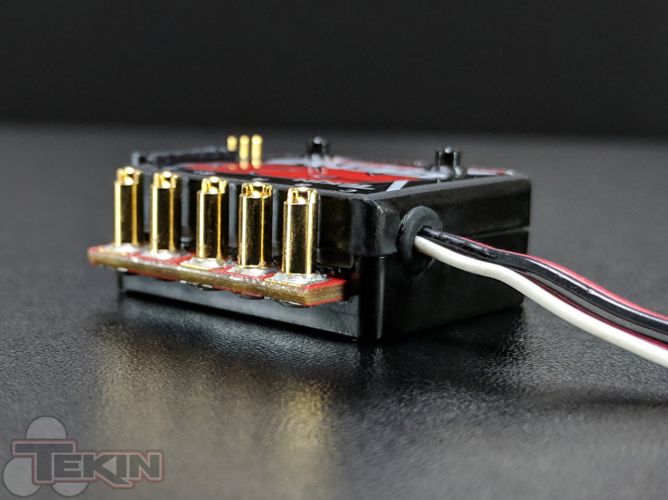

- HD Solder Post Design
- Adjustable Torque Control *
- 3rd Channel Input for On-The-Fly Drag Brake Adjustments
- Adjustable Throttle and Brake Frequencies *
- High Voltage Programmable BEC *
- HotWire Programming Port *
- Data Logging Capability *
- Sensor Checker
- On-Board Temperature Indicator
- ESC Self Diagnostics with Error Codes
- Fully Proportional Forward/Brake/Reverse
- Brushless and Brushed Motor Drive
- Sensored or Sensorless Operation
- LiPo Safe with Custom Voltage Cutoffs
- Sensor Plug for Precise Commutation
- HDAC: High Density Copper PCB's
- Ultra-smooth and Precise Throttle and Braking Control
Specifications:
- Controls: Forward/Brake/Reverse
- Input Voltage: 2-3S LiPo / 4-9S NiMH-NiCD
- **3S LiPo on 2300kV and down or 10.5T and up ONLY**
- Motor Limit Brushless Mode 2S: 8.5 Turn 2-pole 36mm Can
- Motor Limit Brushless Mode 3S: 10.5 Turn 2-pole 36mm Can
- Motor Limit Brushed 2S: 12 Turn 36mm Can
- Motor Limit Brushed 3S: 20 Turn 36mm Can
- Max Current: 140amps per phase*
- BEC: 6.0v / 7.4v @ 5.5amps
- Dimensions: 1.0 x 1.3 x .51in / 26 x 34 x 12.9mm
- Weight: .83oz / 23.5g
ON BOARD QuickTune™ PROGRAMMABLE FEATURES
- DB - Drag Brake (13 steps)
- BS - Brake Strength (13 steps)
- LM - Torque Limiter (7 steps)
- NW - Neutral Width (13 steps)
- TP - Timing Profiles 5 Preset - 2 Custom*
- MT - Motor Type
- Brushless Modes - FWD Only / FWD-REV / FWD-REV Delay / FWD-REV Delay REV Motor Direction
- Brushed Modes - FWD Only / FWD-REV / FWD-REV Delay
- VC - Voltage Cutoff : 2S, 3S, Custom*
