The SRL-706 3-in1 ESC/RX/LED Controller is a combined receiver, speed controller, and light controller for RC vehicles up to 1/18th scale! Whether you've got a touring car, truck, or rock crawler this is the ideal unit to control the power for any 1/18th vehicle equipped with a brushed motor.

The SRL-706 is also water-resistant, making it ideal for anyone who enjoys playing on the beach, in snow or even through mud!

NOTE: Before driving in wet conditions, make sure that all electronics fitted to the vehicle are safe to use (marked as water-resistant or waterproof), or that they are fully enclosed and protected from water and moisture (such as in a sealed receiver/battery case). Fans mounted on speed controllers are not water resistant - we recommend to disconnect the fan from the ESC before driving in wet conditions and allow it to dry fully before reconnecting the fan power. Lubricate exposed metal drivetrain parts such as bearings, outdrives and diff shafts before driving in wet conditions. Motors are not intended for submerged use and may be damaged if used when under water. After driving in wet conditions, make sure to rinse off dirt and any corrosive liquids like saltwater with plain water and re-lubricate metal drivetrain parts.

Features:

Works with TF-706 transmitter
Built in LED controller: 5 Light modes selectable from the transmitter
Adjustable parameters using the TF-706 DIP switches
2 Running Modes: F/B/R (normal running) , F/R (Rock Crawler)
2 Battery Modes: LiPo or NiMH
Adjustable Drag Brake

Specifications:

Operating Voltage: 2S LiPo / 5-7Cell NiMH
BEC Output: 6V/1A
Continuous/Peak Current: 10A/50A
Dimensions: 33x30x12mm (Excluding capacitor)
Weight: 11g

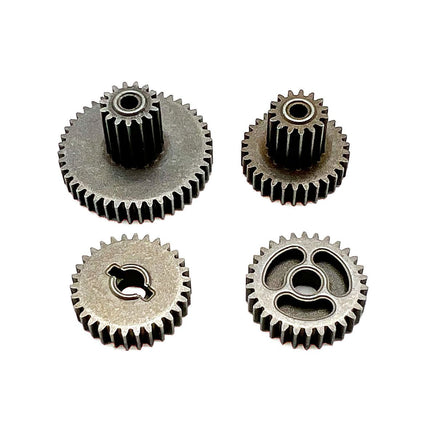

HPI Racing - Transmission Gear Set for Venture18
