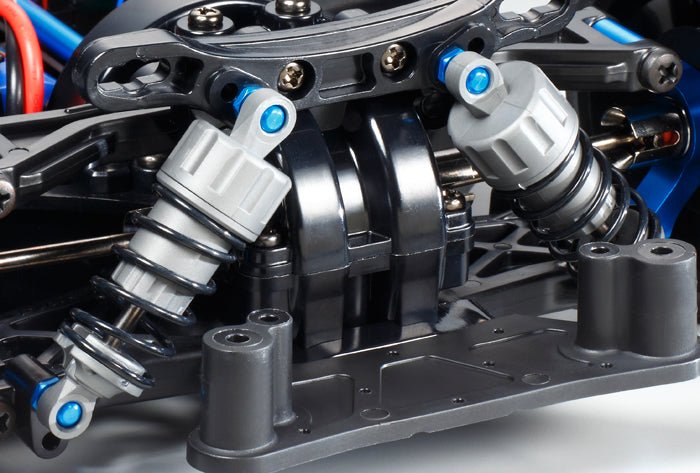

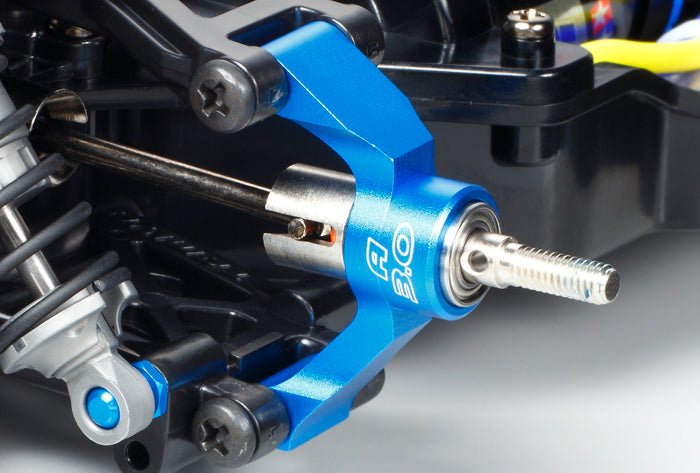

This variant of the efficient 4WD TT-02 chassis includes a range of option parts, allowing you to compete at the spec level with greater versatility! Aluminum rear uprights give 3-degree toe-in for more stable cornering, while an aluminum motor mount makes for greater rigidity and enhanced heat dissipation. A highly reliable drivetrain employs full ball bearings, aluminum propeller shaft and center cups, plus metal drive shafts and joint cups. Suspension is fitted with CVA oil dampers and black coil springs; they provide superior cushioning and improved traction. The kit also includes a TT-02 high speed gear set (68T). The chassis features motor mount, propeller shaft and joints made from lightweight and tough aluminum. Aluminum rear uprights provide toe-in of 3 degrees. Gearbox joints and wheel axles are durable metal. The chassis is cushioned by high-performance CVA oil dampers paired with cool black color springs.

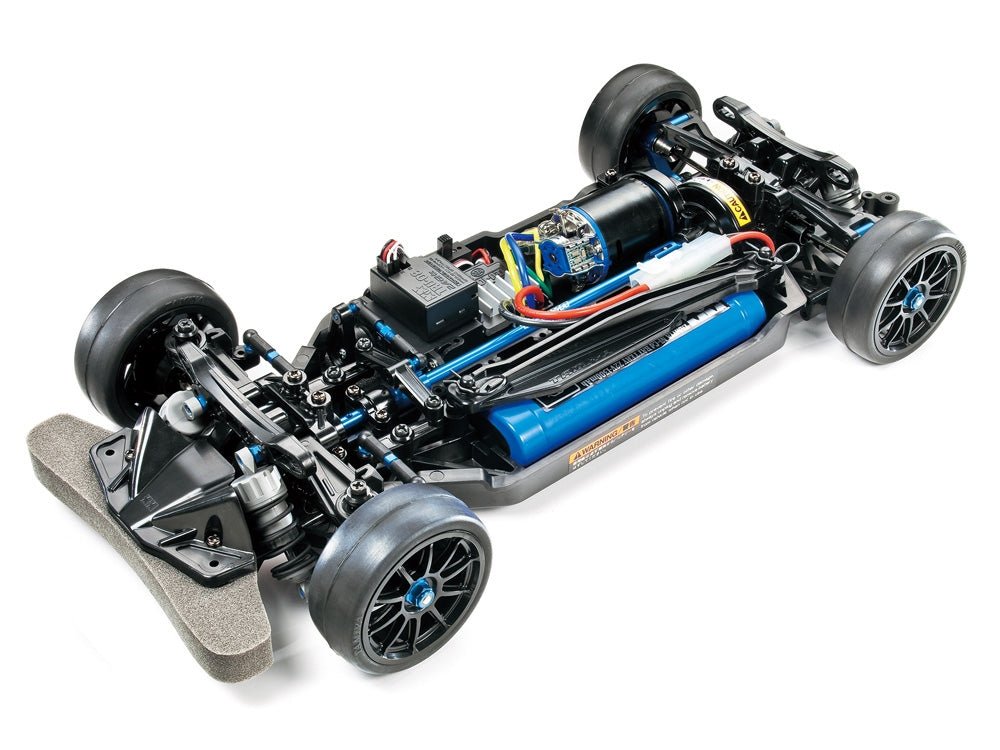

Image shows assembled kit with electronics added for illustration purposes. Electronic equipment sold seperately.
Includes: 1/10 TT-02R Chassis 4WD Kit, Product Manual
Required to Complete: 2-Channel R/C Radio System, ESC, Battery Pack, Battery Charger, Batteries for Transmitter, Type 540 Motor, 190mm Body, Paint, Tools
Features:
- Aluminum Rear Uprights (3-Degree Toe-In)

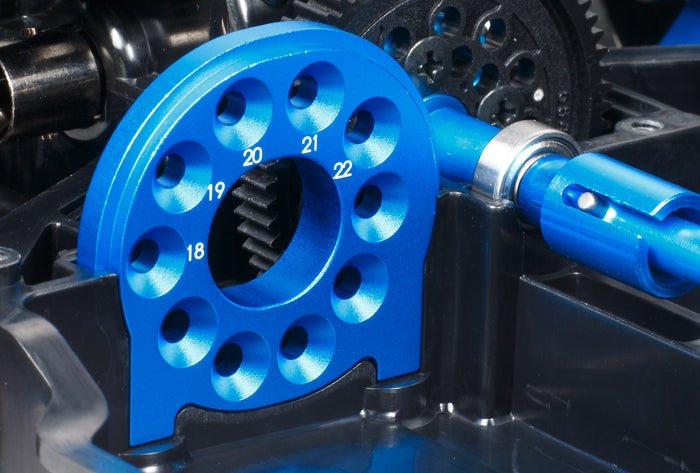

- Aluminum Motor Mount
- TT-02 Aluminum Propeller Joints
- TT-02 Aluminum Propeller Shaft
- TT-02 Full Ball Bearing Set
- Metal Drive Shafts, Wheel Axles and Gearbox Joints
- 3x18mm Aluminum Turnbuckle Shafts
- 4mm Aluminum Flange Lock Nuts (Blue)
- 5mm Aluminum Short Ball Connector Nuts (Blue)
- 5mm Aluminum Ball Connectors (Blue)
- Medium-Narrow Racing Slick Tires
- 5mm Ball Connectors
- CVA Oil Dampers & Springs
Specifications:
- Length: 376mm, Width: 182mm
- Wheelbase: 257mm
- Tire Width/Diameter: 24/64mm (Front & Rear)
- Bathtub-type Frame
- Shaft-Driven 4WD
- Front/Rear 4-Bevel Resin Differentials
- 3-Piece Steering Tie-Rod
- 4-Wheel Double Wishbone Suspension
- Front/Rear CVA Oil Dampers
- Includes 68T and 64T spur gears. Combine with separately-sold pinions for Gear Ratio from 9.82:1 to 5.74:1.
- Electronic Speed Controller (ESC) is sold separately.
